Short Description:

The water treatment capacity covers 50-2000m³/h, the cooling temperature difference is 5-15℃, the fan air volume is 15,000-600,000 m³/h, the operating noise is ≤65dB (A), and the cooling efficiency is stably above 85%. The inlet water temperature is ≤43℃, the outlet water temperature is ≥28℃, the specific surface area of the packing is ≥500m²/m³, the water spray density is 15-25m³/(m² · h), and it adopts FRP anti-corrosion shell and PVC high-efficiency packing.

Share us:

Product Detail

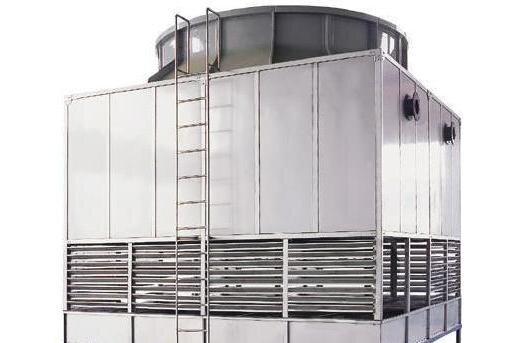

Intellicold cross-flow cooling tower adopts FRP anti-corrosion shell and inclined PVC packing, featuring a large heat dissipation area, uniform water flow distribution, and a cooling efficiency of over 95%. The fan adopts A low-noise axial flow fan, with an operating noise of ≤65dB (A). The motor supports variable frequency speed regulation, which is 20%-30% more energy-efficient than fixed-frequency models. The water treatment capacity range is 50-1000m³/h, and it is suitable for water temperature differences of 5-15℃. It can be equipped with auxiliary systems such as automatic water replenishment, scale removal, and anti-freezing. The product is resistant to wind loads and acids and alkalis, and is widely used in circulating water systems of chemical, power, pharmaceutical, central air conditioning and other industries. It supports parallel operation of multiple units, and the installation and maintenance space is more compact.
